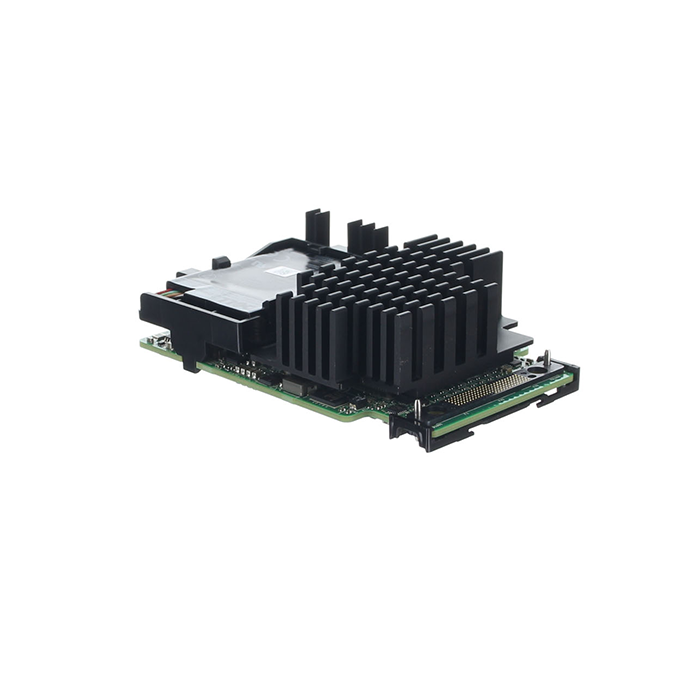

Dell PERC H740P Mini Mono RAID Controller Card with 8GB NV Cache

The Dell PERC H740P Mini Mono RAID Controller is designed to provide advanced storage management and improved performance for Dell PowerEdge servers in enterprise and data center environments. It helps manage multiple storage drives through RAID configurations while maintaining data reliability and performance.

The controller supports 12Gb/s SAS and 6Gb/s SATA drives, allowing servers to connect to both hard drives and solid state drives used in enterprise storage systems.

It features 8GB of non volatile (NV) cache memory, which stores frequently accessed data and improves overall read and write performance. The NV cache protects data by preserving cached data even during unexpected power interruptions.

The Mini Mono form factor allows the controller to connect directly to the server motherboard rather than using a standard PCIe slot, which helps save expansion slots for other devices such as network adapters or GPUs.

The controller supports several RAID levels including RAID 0, 1, 5, 6, 10, 50 and 60, providing flexible options for balancing performance, capacity and data protection in enterprise storage configurations.

The Dell PERC H740P controller is commonly used in Dell PowerEdge servers such as R640, R740 and other 14th generation systems, where reliable storage performance and data protection are required.

With its large cache memory and advanced RAID capabilities, the Dell PERC H740P Mini Mono RAID controller provides a dependable storage management solution for enterprise server infrastructures.

Key Features

Model: Dell PERC H740P

Device Type: RAID Controller

Form Factor: Mini Mono Controller Card

Cache Memory: 8 GB Non Volatile Cache

Storage Interface: 12Gb/s SAS and 6Gb/s SATA

Supported RAID Levels: 0, 1, 5, 6, 10, 50, 60

Compatibility: Dell PowerEdge servers (14th Generation)

Usage: Enterprise storage management and RAID configuration
