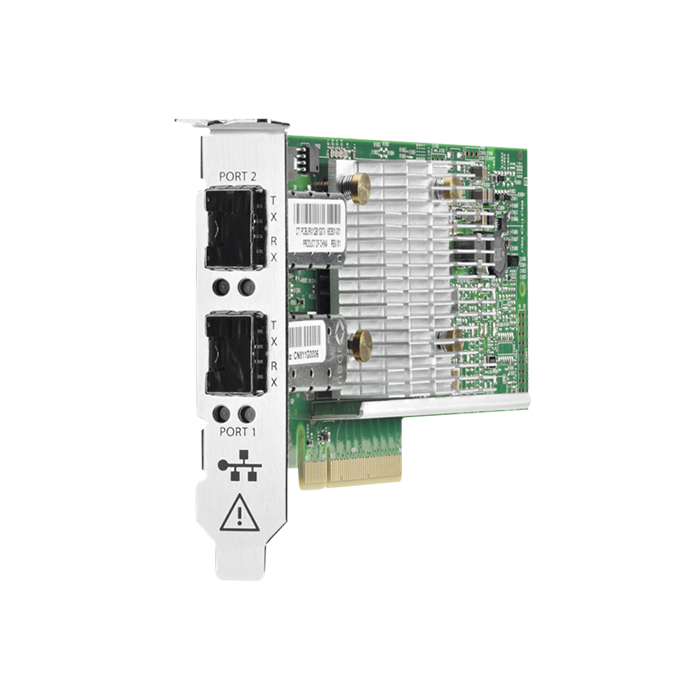

HPE Ethernet 10Gb 2-Port 530SFP+ Adapter High Profile (652503-B21)

The HPE Ethernet 10Gb 2-Port 530SFP+ Adapter is a high performance networking solution designed for HPE ProLiant servers and enterprise data centers. It delivers fast, reliable and scalable network connectivity for virtualization, cloud computing and business-critical applications.

Equipped with two 10 Gigabit Ethernet SFP+ ports, this adapter provides high-bandwidth connectivity for demanding workloads. Each port supports speeds of up to 10Gbps, enabling servers to handle large volumes of network traffic with low latency and improved efficiency.

The adapter can deliver up to 40Gbps of aggregate bidirectional throughput across both ports. As a result, businesses can reduce network bottlenecks and improve application performance in data-intensive environments.

Using SFP+ connectivity, the adapter supports compatible fiber optic transceivers and direct attach cables. This flexibility allows organizations to deploy high-speed networking across both short-distance and long-distance infrastructures.

Powered by the Broadcom or QLogic 57810S controller, the adapter offers reliable network processing and advanced enterprise networking capabilities. In addition, the PCI Express 2.0 x8 interface ensures fast communication between the server and network infrastructure.

The HPE 530SFP+ adapter supports advanced networking features such as VLAN tagging, Jumbo Frames, TCP Offload Engine (TOE), PXE Boot, Receive Side Scaling (RSS) and network teaming. These technologies help optimize network performance while reducing CPU utilization.

Validated for compatibility with select HPE ProLiant Gen8, Gen9 and Gen10 servers, this adapter is an excellent choice for organizations looking to enhance network performance and scalability.

Whether you are deploying virtualization platforms, cloud services or high-performance enterprise applications, the HPE 530SFP+ 10Gb Ethernet Adapter delivers the speed, reliability and flexibility required for modern server environments.

Key Features

Model: HPE Ethernet 10Gb 2-Port 530SFP+ Adapter (652503-B21)

Port Configuration: 2 x 10 Gigabit Ethernet SFP+ Ports

Data Transfer Rate: Up to 10 Gbps per port

Aggregate Bandwidth: Up to 40 Gb per second bidirectional throughput

Interface: PCI Express 2.0 x8

Controller: Broadcom or QLogic 57810S

Form Factor: High Profile Plug in Adapter

Networking Features: VLAN support, Jumbo Frames, TCP Offload Engine, PXE Boot, Receive Side Scaling

Compatibility: Select HPE ProLiant Servers including Gen8, Gen9 and Gen10 platforms

Usage: Data centers, virtualization platforms, cloud infrastructure and enterprise networking
