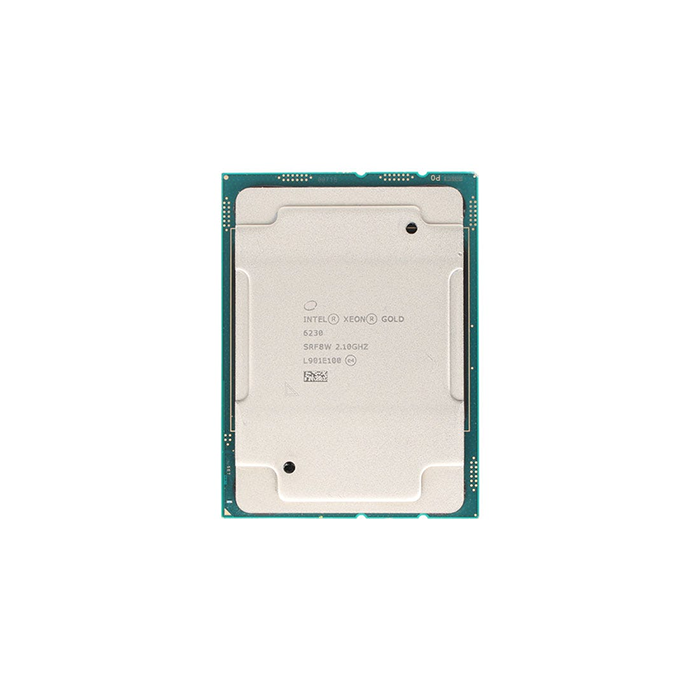

Intel Xeon Gold 6230 Server Processor 2.10GHz 27.5MB Cache 20 Core 40 Thread

The Intel Xeon Gold 6230 processor is designed to deliver powerful multi core performance for enterprise servers and modern data center environments. It is part of the 2nd Generation Intel Xeon Scalable processor family, built on the Cascade Lake architecture used in advanced server platforms.

The processor operates at a base clock speed of 2.10GHz and supports Intel Turbo Boost Technology, allowing the processor to increase its operating frequency up to around 3.90GHz when additional processing performance is required.

It features 20 physical cores and 40 processing threads, enabled by Intel Hyper Threading Technology. This architecture allows servers to efficiently run multiple applications and virtual machines simultaneously, making it suitable for virtualization platforms, enterprise applications and cloud infrastructure.

The processor includes 27.5MB Intel Smart Cache, which improves processing efficiency by reducing latency when frequently accessed data is processed by the CPU.

It supports Intel Ultra Path Interconnect with up to three UPI links, enabling high speed communication between processors in multi processor server configurations.

With a thermal design power of 125W, the processor delivers strong computing capability while maintaining balanced power efficiency for enterprise server environments.

The Intel Xeon Gold 6230 processor is commonly used in enterprise servers, virtualization environments, database platforms and cloud infrastructure, where high core counts and reliable multi thread performance are required.

Key Features

Model: Intel Xeon Gold 6230

Processor Base Frequency: 2.10 GHz

Max Turbo Frequency: Up to 3.90 GHz

Cores: 20

Threads: 40

Cache: 27.5 MB Intel Smart Cache

Interconnect: Intel Ultra Path Interconnect

Architecture: Cascade Lake

Turbo Boost Technology: Yes

Hyper Threading: Yes

Thermal Design Power: 125 W

Usage: Enterprise servers, virtualization platforms, database systems and cloud workloads
