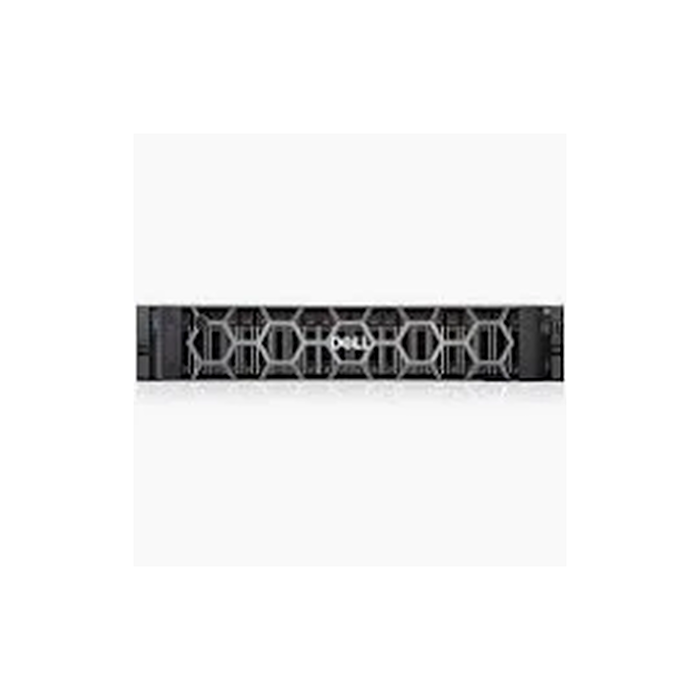

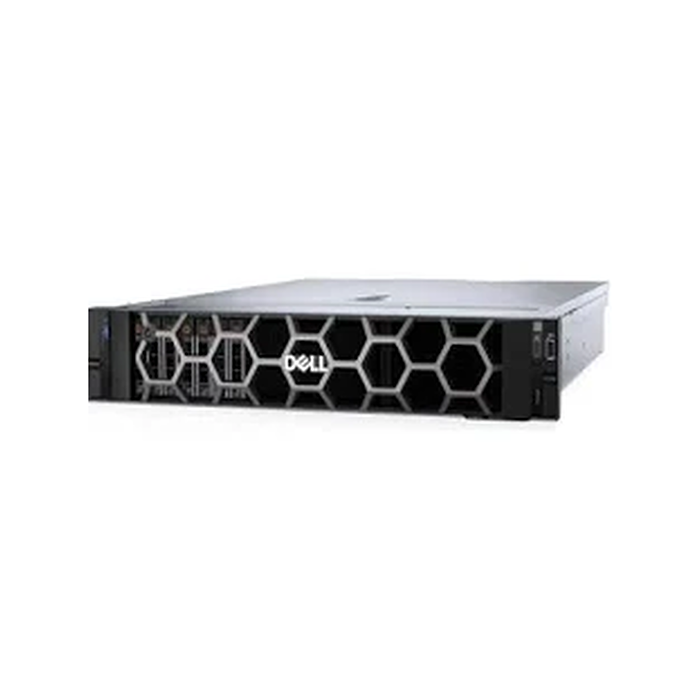

Dell PowerEdge R760xs | Dual Xeon Gold 5418Y | 32GB | 480GB SSD | PERC H755 | 8×3.5″” | Dual 1100W | 3Yr ProSupport

The Dell PowerEdge R760xs is a powerful 2U rack mounted enterprise server designed for virtualization, database workloads and modern data center infrastructure. Built on the Intel Xeon Scalable platform, the R760xs provides high compute performance, DDR5 memory support and flexible storage configurations to support demanding enterprise workloads.

This configuration is powered by dual Intel Xeon Gold 5418Y processors, each delivering 24 cores and 48 threads with a base frequency of 2.0GHz and Intel Turbo Boost technology. With two processors installed, the system provides exceptional multi core processing power suitable for virtualization clusters, enterprise databases, analytics platforms and high performance business applications.

The server includes 32GB DDR5 RDIMM ECC memory (2 × 16GB) running at 5600 MT/s, offering significantly improved memory bandwidth and efficiency compared with previous server generations. ECC memory automatically detects and corrects memory errors to ensure stable system performance and protect critical workloads.

For storage, the system is equipped with a 480GB SATA read intensive enterprise SSD installed in a 3.5 inch hybrid hot plug carrier, delivering fast system boot times and reliable performance for operating systems and enterprise applications. The 3.5 inch chassis supports up to 8 SAS or SATA drives, enabling organizations to expand storage capacity as infrastructure requirements grow.

Storage performance and data protection are handled by the PERC H755 SAS RAID controller, which supports RAID levels 0, 1 and 5 to improve storage performance and ensure redundancy for business critical data.

Networking connectivity is provided through the Broadcom 5720 dual port 1GbE onboard network adapter, ensuring reliable network connectivity for enterprise infrastructure.

System administrators can monitor and manage the server using Dell iDRAC9 Enterprise, which enables advanced remote management capabilities including lifecycle management, system monitoring and firmware updates without requiring physical access to the hardware.

Power reliability is ensured with dual hot plug 1100W Titanium power supplies (1+1 redundancy), allowing the server to continue operating even if one power supply fails. The system also includes a standard fan set to maintain stable cooling and performance under enterprise workloads.

The server includes ReadyRails sliding rails for secure rack installation and is backed by Dell 3 Year ProSupport, ensuring enterprise level support and service coverage.

Key Specifications

Model: Dell PowerEdge R760xs

Form Factor: 2U Rack Server (3.5″ 8 Bay chassis)

Processors: 2 × Intel Xeon Gold 5418Y (24C / 48T each)

Memory: 32GB DDR5 RDIMM ECC (2 × 16GB, 5600 MT/s)

Storage: 1 × 480GB SATA SSD (Read Intensive, Hot Plug)

Drive Bays: Up to 8 × 3.5″ SAS/SATA drives

RAID Controller: PERC H755 SAS Front

Networking: Broadcom 5720 Dual Port 1GbE Onboard

Remote Management: iDRAC9 Enterprise

Cooling: Standard fan set (x5)

Power Supply: Dual 1100W Titanium Hot Plug PSUs (1+1 redundancy)

Rails: ReadyRails sliding rails (no cable management arm)

Warranty: 3 Year Dell ProSupport
