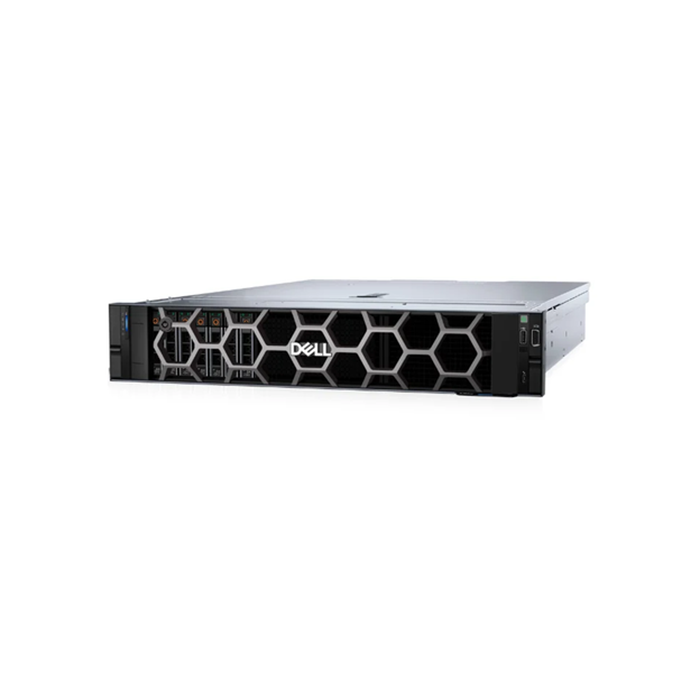

Dell PowerEdge R760xs | Dual Xeon Silver 4510 | 64GB | 1.2TB SAS | PERC H755 | 16×2.5″” + NVMe | 10GbE | Dual 1100W | 3Yr Basic

The Dell PowerEdge R760xs is a powerful 2U enterprise rack server designed for virtualization platforms, enterprise applications and high performance data center environments. Built on the latest Intel Xeon Scalable architecture, the R760xs delivers strong compute capabilities, high speed memory and flexible storage expansion to support demanding workloads.

This configuration features dual Intel Xeon Silver 4510 processors, providing powerful multi core performance for virtualization clusters, enterprise applications, databases and infrastructure services. With two CPUs installed, the server delivers enhanced processing capacity and improved workload distribution for high performance computing environments.

The system includes 64GB DDR5 RDIMM ECC memory (2 × 32GB) running at 5600 MT/s, offering improved memory bandwidth and efficiency compared with previous server generations. ECC technology automatically detects and corrects memory errors, ensuring system stability and protecting critical workloads.

For storage, the server includes a 1.2TB SAS 12Gbps 10K RPM hot plug enterprise hard drive. The 2.5 inch chassis supports up to 16 SAS or SATA drives, along with support for up to 8 NVMe drives, enabling high performance storage configurations for databases, virtualization and software defined storage solutions.

Storage performance and redundancy are managed through the PERC H755 SAS front RAID controller, which supports RAID levels 0, 1 and 5 for improved performance and data protection.

Networking connectivity is provided through the Broadcom 57414 dual port 10GbE OCP NIC 3.0 adapter, along with the Broadcom 5720 dual port 1Gb onboard LOM, providing flexible networking options for enterprise infrastructure.

System administrators can monitor and manage the server using iDRAC9 Enterprise (16G), Dell’s advanced remote management platform that enables remote diagnostics, lifecycle management and firmware updates without requiring physical access.

Power reliability is ensured with dual redundant 1100W Titanium hot plug power supplies (1+1 configuration), ensuring continuous operation even if one power supply fails.

The server also includes rack rails and a front bezel for secure installation in rack environments.

Backed by Dell 3 Year Basic Warranty, the PowerEdge R760xs delivers enterprise grade reliability, scalability and performance for organizations building modern IT infrastructure.

Key Specifications

Model: Dell PowerEdge R760xs

Form Factor: 2U Rack Server

Processors: 2 × Intel Xeon Silver 4510

Memory: 64GB DDR5 RDIMM ECC (2 × 32GB, 5600 MT/s)

Storage: 1 × 1.2TB SAS 12Gbps 10K RPM Hot Plug

Drive Bays: Up to 16 × 2.5″ SAS/SATA drives + NVMe support

RAID Controller: PERC H755 SAS Front (RAID 0/1/5)

Networking:

Broadcom 5720 Dual Port 1Gb On Board LOM

Broadcom 57414 DualvPort 10GbE OCP NIC 3.0

Management: iDRAC9 Enterprise (16G)

Expansion: PCIe Riser Config 0 (1×16 + 1×8 slots)

Power Supply: Dual 1100W Titanium Hot Plug PSUs (1+1 redundancy)

Rails: Rack rails with front bezel

Warranty: 3 Year Dell Basic Warranty
