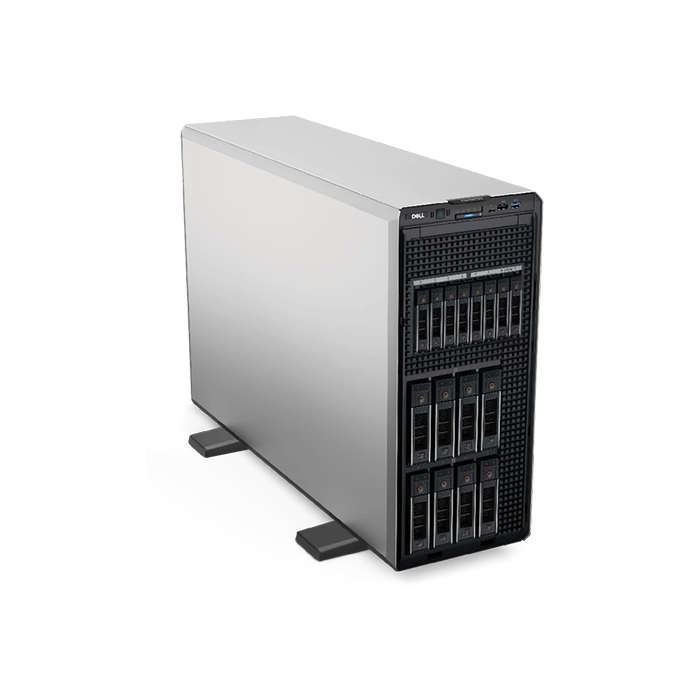

Dell PowerEdge T560, Intel Xeon Silver 4410Y, 16GB RDIMM DDR5, 480GB Read-Intensive SSD, PERC H755, iDRAC9 Enterprise, Dual 700W Titanium PSUs, 3-Year ProSupport NBD

The Dell PowerEdge T560 is a scalable, enterprise class tower server designed for compute intensive and storage heavy workloads in branch offices and data centers. Configured here with the Intel Xeon Silver 4410Y (12 cores / 24 threads), the platform balances multi threaded performance with energy efficiency for virtualization, databases and business applications.

Storage and data protection are central to this build: the server uses a 480GB SATA Read Intensive hotplug SSD in a 3.5″ hybrid carrier and supports chassis options with up to 8 front hot plug 3.5″ drives (depending on chassis chosen). For robust storage performance and redundancy the system includes a PERC H755 hardware RAID controller (front facing), suitable for RAID levels commonly used in enterprise deployments.

Networking and manageability are enterprise ready: on board networking is provided by the Broadcom 5720 dual port 1Gb LOM, and remote systems management is handled by iDRAC9 Enterprise (16G) for full lifecycle management, firmware updates and remote diagnostics. Power resilience in this SKU comes from redundant hot plug 700W Titanium power supplies (1+1) for high availability in 200–240VAC regions. Backed by 3 Year ProSupport with Next Business Day onsite service, the T560 is built for business continuity and easy field servicing.

Key features

Model: Dell PowerEdge T560 (tower chassis; up to 8 × 3.5″ hot plug drives).

Processor: Intel Xeon Silver 4410Y (12C/24T, 2.0 GHz base, turbo to ~3.9 GHz).

Memory: 16GB DDR5 RDIMM (registered ECC; platform supports up to 1.5TB across 16 DIMM slots).

Storage (factory): 1 × 480GB SATA Read Intensive SSD (2.5″ hot plug in 3.5″ hybrid carrier); chassis supports multiple hot plug drive bay configurations.

RAID controller: PERC H755 (front, full height),  hardware RAID for RAID 0/1/5/10/6/50/60 (controller features vary by SKU).

Network: Broadcom Broadcom 5720 Dual Port 1Gb On Board LOM (dual RJ-45).

Management: iDRAC9 Enterprise (16G) with Dell OpenManage integration for remote monitoring and lifecycle management.

Power: Dual hot plug 700W Titanium PSUs (1+1) for redundancy (region/config dependent).

I/O & expansion: Multiple PCIe slots and riser options; supports optional OCP 3.0 / additional NICs and GPUs per chassis capability.

Warranty / Support: 3 Year ProSupport with Next Business Day onsite (configurable at purchase).
