Dell PowerEdge R760xs | Dual Xeon Silver 4510 | 64GB | 1.2TB SAS | PERC H755 | 16×2.5″” + NVMe | 10GbE | Dual 1100W | 3Yr ProSupport

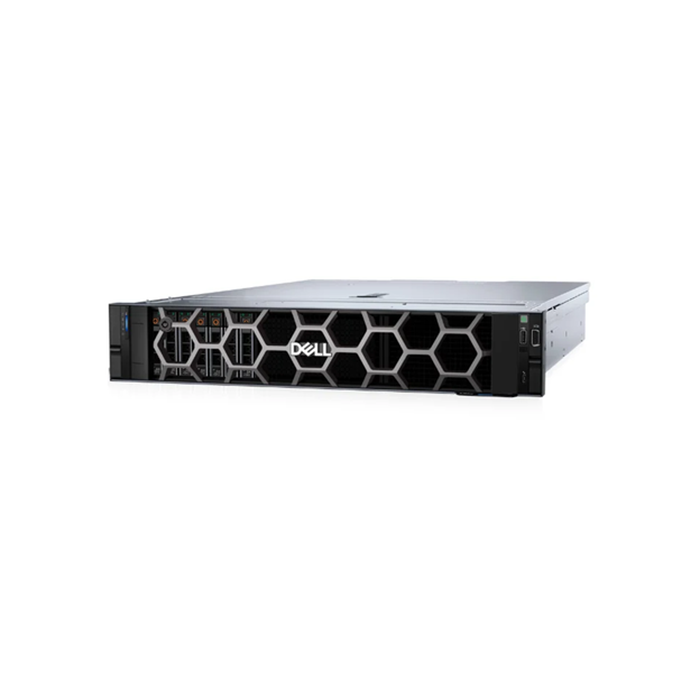

The Dell PowerEdge R760xs is a modern 2U rack server designed for virtualization platforms, enterprise applications and high performance computing environments. Built on the latest Intel Xeon Scalable architecture, the R760xs offers strong processing capabilities, high speed memory and flexible storage expansion, making it ideal for growing data center infrastructures.

This configuration is equipped with dual Intel Xeon Silver 4510 processors, delivering powerful multi core performance with Intel Turbo Boost and Hyper Threading technologies. With two CPUs installed, the system provides enhanced compute capacity for virtualization clusters, database workloads, analytics platforms and enterprise applications.

The server includes 64GB DDR5 RDIMM ECC memory (2 × 32GB) running at 5600 MT/s, offering significantly higher bandwidth and improved efficiency compared to previous server generations. ECC memory automatically detects and corrects memory errors, ensuring stable system operation and protecting mission critical workloads.

For storage, the server includes a 1.2TB SAS 12Gbps 10K RPM enterprise hard drive. The 2.5 inch chassis supports up to 16 SAS or SATA drives, along with support for up to 8 NVMe drives, enabling high performance storage configurations suitable for virtualization environments, large databases and data intensive workloads.

Storage performance and data protection are handled by the PERC H755 SAS front RAID controller, which supports RAID levels 0, 1 and 5 for improved storage performance and redundancy.

Networking connectivity is provided through both the Broadcom 5720 dual port 1Gb onboard LOM and a Broadcom 57414 dual port 10GbE OCP NIC, enabling high speed networking suitable for enterprise workloads and virtualization clusters.

System administrators can monitor and manage the server through iDRAC9 Enterprise (16G), Dell’s advanced remote management platform that enables lifecycle management, firmware updates and remote diagnostics without requiring physical access to the server.

Power reliability is ensured through dual redundant 1100W Titanium hot plug power supplies (1+1 configuration), ensuring continuous operation even if one power supply fails.

The server includes rack rails and a front bezel for secure and convenient installation in rack environments.

Backed by Dell 3 Year ProSupport, the PowerEdge R760xs delivers enterprise grade performance, scalability and reliability for modern IT infrastructures.

Key Specifications

Model: Dell PowerEdge R760xs

Form Factor: 2U Rack Server

Processors: 2 × Intel Xeon Silver 4510

Memory: 64GB DDR5 RDIMM ECC (2 × 32GB, 5600 MT/s)

Storage: 1 × 1.2TB SAS 12Gbps 10K RPM Hot Plug

Drive Bays: Up to 16 × 2.5″ SAS/SATA drives + NVMe support

RAID Controller: PERC H755 SAS Front (RAID 0/1/5)

Networking:

Broadcom 5720 Dual Port 1Gb On Board LOM

Broadcom 57414 Dual Port 10GbE OCP NIC 3.0

Management: iDRAC9 Enterprise (16G)

Expansion: PCIe Riser Config 0 (1×16 + 1×8 slots)

Power Supply: Dual 1100W Titanium Hot Plug PSUs (1+1 redundancy)

Rails: Rack rails with front bezel

Warranty: 3 Year Dell ProSupport
