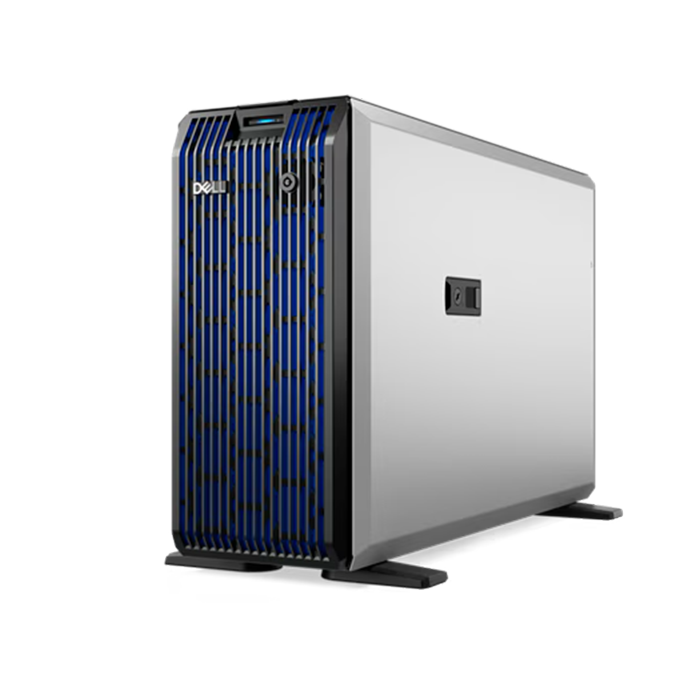

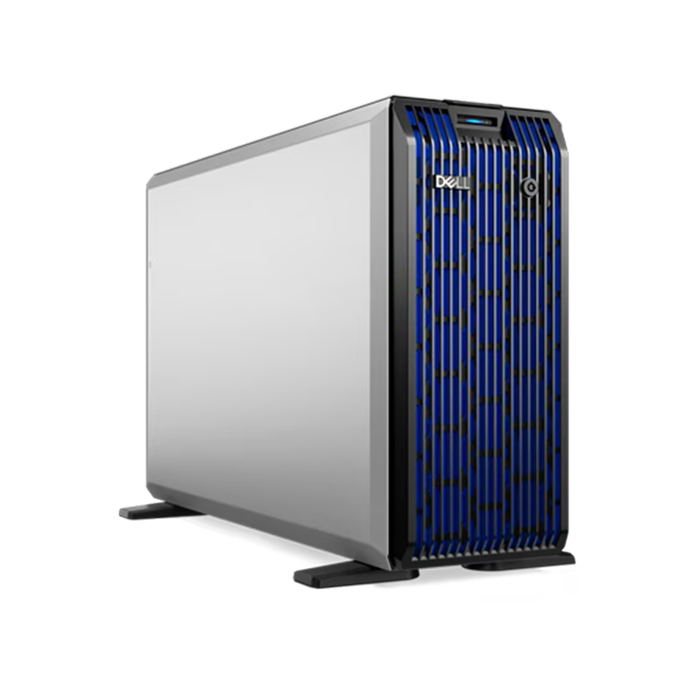

Dell PowerEdge T360 Tower, Intel Xeon E-2414, 16GB DDR5 ECC, 2TB 7.2K SATA, PERC H355, iDRAC9, 600W PSU, 3 Year Basic NBD

The Dell PowerEdge T360 is a scalable tower server built for small to medium business, branch and edge deployments that require a balance of performance, storage density and manageability. This build combines the Intel Xeon E-2414 processor with 16GB DDR5 UDIMM ECC (3200 MT/s) to provide reliable multi threaded performance for file/print services, virtualization hosts, backup/restore and general server workloads.

Storage is focused on capacity and serviceability: the 3.5″ hot plug chassis supports up to eight 3.5″ drives, and this SKU ships with a 2TB 7,200 RPM SATA hot plug drive for large data sets. For data reliability and performance, the system includes a PERC H355 full height RAID adapter (hardware RAID) enabling RAID 0/1/5/10 configurations for redundancy and faster IO.

Networking and management are enterprise ready: the motherboard has Broadcom dual port 1Gb onboard LOM (dual RJ-45) and remote systems management is handled by iDRAC9 Express (15G) with OpenManage support for remote monitoring, firmware lifecycle and basic provisioning. The platform also includes security features such as TPM 2.0 and supports common server OS options (Windows Server, RHEL, Ubuntu, VMware) through Dell channel SKUs.

Power and availability are covered with a single hot plug 600W power supply (1+0) in this configuration and the server is backed by 3 Year Basic Next Business Day (NBD) warranty/service for commercial deployments. The T360’s combination of high drive density, optional high wattage PSUs and full height PERC makes it a flexible choice when capacity, RAID and moderate CPU performance are priorities.

Key features

Model: PowerEdge T360 Tower (3.5″ chassis, up to 8 hot plug 3.5″ drives).

Processor: Intel Xeon E-2414 (4 cores, multi threaded server performance).

Memory: 16GB UDIMM DDR5 ECC (3200 MT/s; upgradeable across DIMM slots).

Storage (factory): 1 × 2TB 7,200 RPM SATA 6Gb/s hot plug drive (chassis supports up to 8 × 3.5″ hot plug drives).

RAID: PERC H355 full height RAID adapter (hardware RAID, RAID 0/1/5/10 support).

On board LAN: Broadcom dual port 1Gb On Board LOM (dual RJ-45).

Management: iDRAC9 Express (15G) with OpenManage integration for remote monitoring and basic lifecycle management.

Security: TPM 2.0 (hardware platform security).

Power: Single hot plug 600W PSU (1+0); optional redundant PSU configurations available on other SKUs.

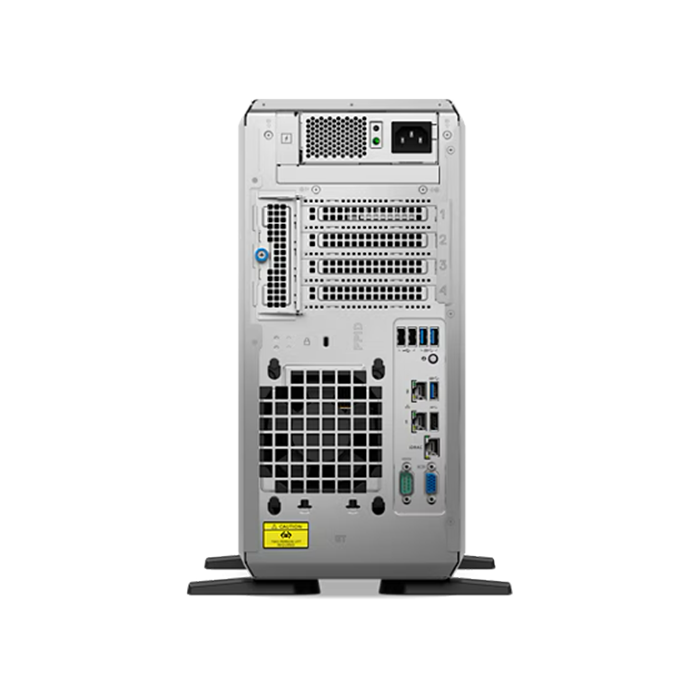

I/O / Expansion: Multiple PCIe slots (supports full height PERC H355), numerous USB ports, video, serial as per chassis spec.

OS / Software: Configurable, Windows Server / RHEL / Ubuntu / VMware or No OS (channel dependent).

Warranty / Support: 3 Year Basic Next Business Day (NBD) onsite support (channel/configurable).

Ideal for: File & print, backup hosts, small virtualization clusters, branch office servers needing high drive capacity and hardware RAID.
