Dell PowerEdge R760xs | Dual Xeon Silver 4514Y | 128GB | 12TB SAS | PERC H755 | 12×3.5″” | Quad 1GbE | Dual 1100W | 3Yr Basic

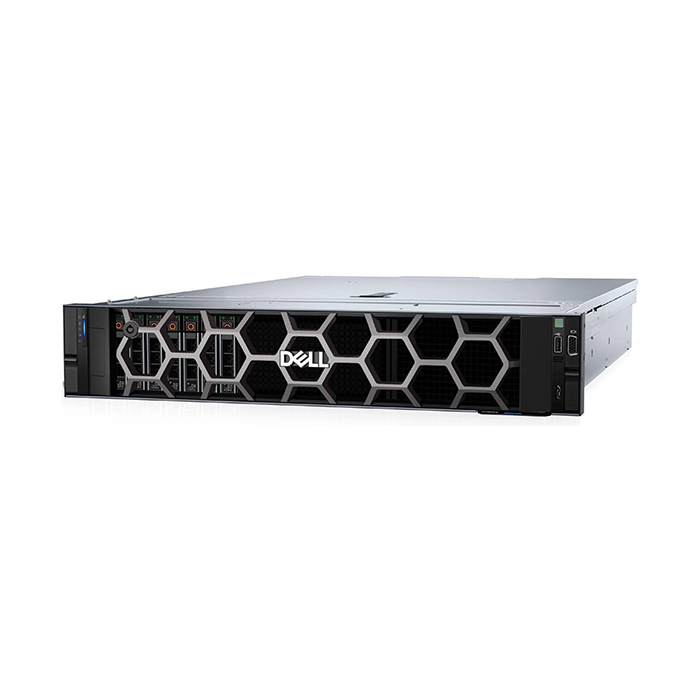

The Dell PowerEdge R760xs is a powerful 2U rack server built to support enterprise applications, virtualization platforms and high capacity storage workloads. Designed on the Intel Xeon Scalable architecture, the R760xs offers strong compute performance, high speed DDR5 memory and flexible storage expansion for modern data center environments.

This configuration is powered by dual Intel Xeon Silver 4514Y processors, each featuring 16 cores and 32 threads with Intel Turbo Boost and Hyper Threading technologies. With two CPUs installed, the server provides powerful multi core processing performance suitable for virtualization clusters, business critical applications, analytics platforms and infrastructure services.

The server includes 128GB DDR5 RDIMM ECC memory (2 × 64GB) running at 5600 MT/s, providing significantly improved memory bandwidth and efficiency compared with previous generation server platforms. ECC memory automatically detects and corrects memory errors to ensure stable system performance and protect critical workloads.

For storage, the system includes a 12TB SAS 12Gbps enterprise hard drive (3.5″ hot plug) designed for reliable, high capacity storage in enterprise environments. The 3.5 inch chassis supports up to 12 SAS or SATA drives, allowing organizations to scale storage capacity as data requirements grow.

Storage performance and data protection are managed through the PERC H755 SAS RAID controller, supporting RAID levels 0, 1 and 5 to enhance storage efficiency and redundancy.

Networking connectivity is delivered through both the Broadcom 5720 dual port 1GbE onboard network interface and a Broadcom 5720 quad port 1GbE OCP NIC 3.0 adapter, providing flexible network connectivity options for enterprise infrastructure and data center deployments.

System administrators can remotely monitor and manage the server using Dell iDRAC9 Enterprise (16G), enabling advanced lifecycle management, remote diagnostics and firmware updates without requiring direct physical access to the server.

Power reliability is ensured through dual hot plug 1100W Titanium redundant power supplies (1+1 configuration), ensuring continuous operation even if one power supply fails. The server also includes rack rails and a standard front bezel for secure installation in rack environments.

Backed by Dell 3 Year Basic Warranty, the PowerEdge R760xs provides reliable performance, scalability and enterprise grade hardware for organizations running mission critical workloads.

Key Specifications

Model: Dell PowerEdge R760xs

Form Factor: 2U Rack Server (3.5″ chassis)

Processors: 2 × Intel Xeon Silver 4514Y (16C / 32T each)

Memory: 128GB DDR5 RDIMM ECC (2 × 64GB, 5600 MT/s)

Storage: 1 × 12TB SAS 12Gbps 3.5″ Hot Plug

Drive Bays: Up to 12 × 3.5″ SAS/SATA drives

RAID Controller: PERC H755 SAS Front (RAID 0/1/5)

Networking:

Broadcom 5720 Dual Port 1GbE On Board LOM

Broadcom 5720 Quad Port 1GbE OCP NIC 3.0

Remote Management: iDRAC9 Enterprise (16G)

Expansion: PCIe slots (1×16 + 1×8)

Power Supply: Dual 1100W Titanium Hot Plug PSUs (1+1 redundancy)

Rails: Rack rails with front bezel

Warranty: 3 Year Dell Basic Warranty
