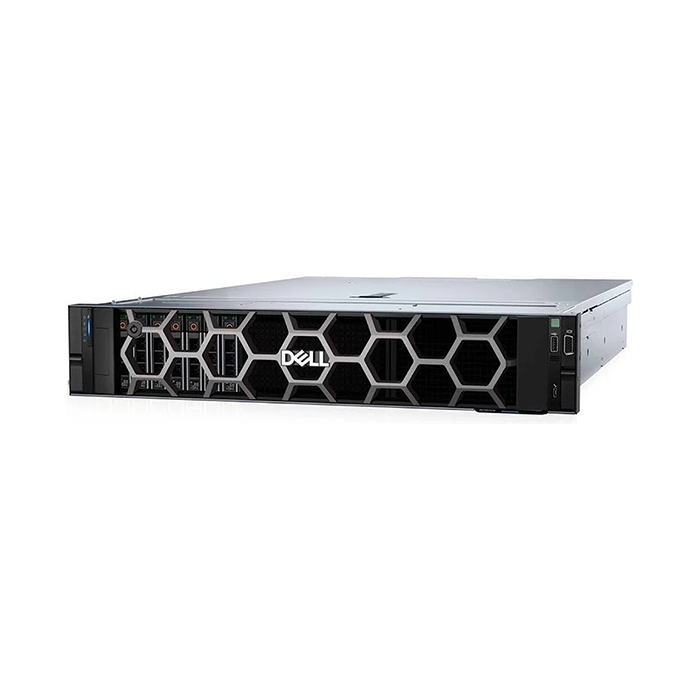

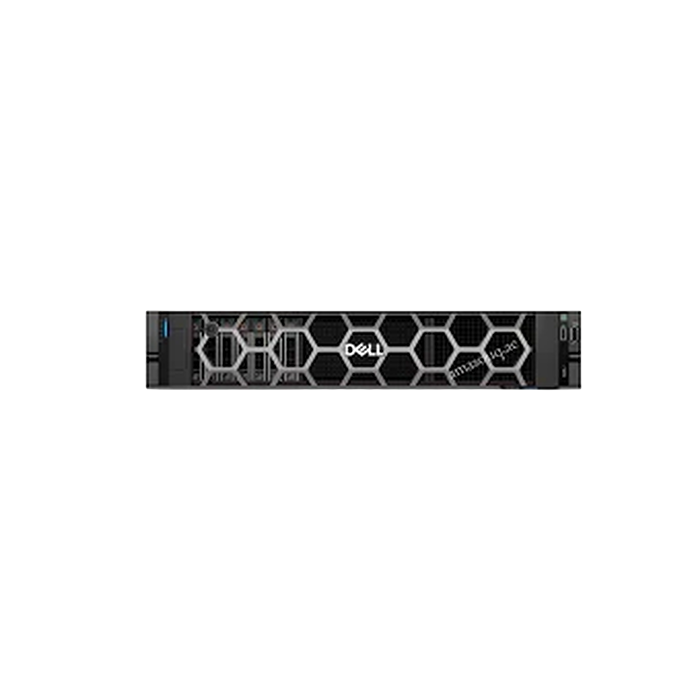

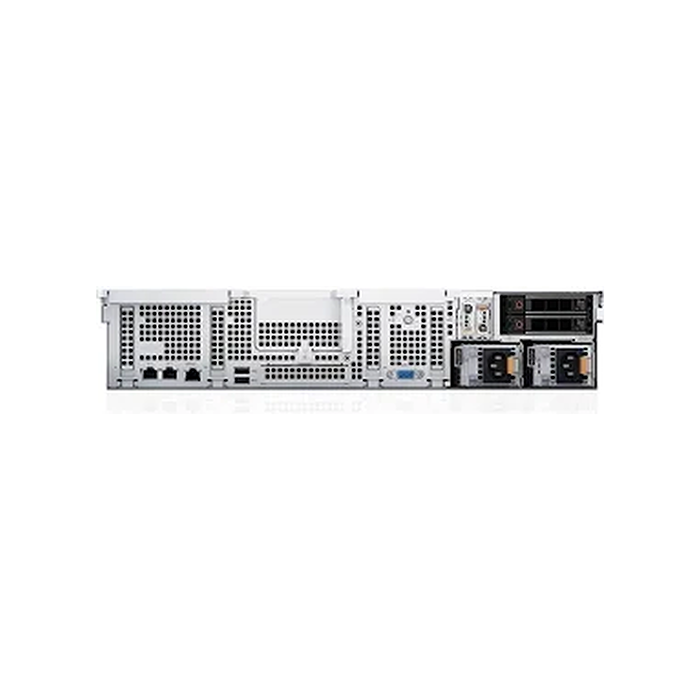

Dell PowerEdge R760xs | Xeon Gold 5420+ | 16GB | 4TB SAS | PERC H755 | 12×3.5″” | 10/25GbE | Dual 700W | 3Yr ProSupport

The Dell PowerEdge R760xs is a powerful 2U rack mounted enterprise server built to support virtualization environments, enterprise applications and data intensive workloads. Designed on the Intel Xeon Scalable architecture, the R760xs delivers strong compute performance, high speed DDR5 memory support and flexible storage expansion for modern data center environments.

This configuration is powered by the Intel Xeon Gold 5420+ processor, delivering enterprise grade compute performance with high core density and advanced Intel technologies such as Turbo Boost and Hyper Threading. The processor is designed to handle demanding workloads such as virtualization clusters, database servers, analytics platforms and large scale enterprise applications.

The system includes 16GB DDR5 RDIMM ECC memory, providing reliable performance and improved bandwidth compared with earlier server memory technologies. ECC memory automatically detects and corrects memory errors to ensure stable system operation and protect mission critical workloads.

For storage, the server is equipped with a 4TB SAS 12Gbps enterprise hard drive (3.5″ hot plug) operating at 7.2K RPM, providing reliable high capacity storage for business applications and data workloads. The 3.5 inch chassis supports up to 12 SAS or SATA drives, allowing organizations to expand storage capacity as infrastructure requirements grow.

Storage performance and redundancy are handled by the PERC H755 SAS RAID controller, supporting RAID levels 0, 1 and 5 to improve storage performance and ensure data protection.

Networking connectivity is provided through the Broadcom 57414 network adapter, delivering high speed connectivity suitable for enterprise networking environments and data center workloads.

System administrators can remotely monitor and manage the server using Dell iDRAC9 Enterprise, which enables advanced lifecycle management, remote diagnostics and firmware updates without requiring direct physical access to the server.

Power reliability is ensured through dual 700W Titanium hot plug redundant power supplies (1+1 configuration), allowing the server to continue operating even if one power supply fails. The server also includes rack rails and a front bezel for secure installation in rack environments.

Backed by Dell 3 Year ProSupport, the PowerEdge R760xs provides enterprise grade reliability, scalability and support for modern IT infrastructures.

Key Specifications

Model: Dell PowerEdge R760xs

Form Factor: 2U Rack Server (3.5″ chassis)

Processor: Intel Xeon Gold 5420+

Memory: 16GB DDR5 RDIMM ECC

Storage: 1 × 4TB SAS 12Gbps 7.2K 3.5″ Hot Plug Drive

Drive Bays: Up to 12 × 3.5″ SAS/SATA drives

RAID Controller: PERC H755 Adapter (Low Profile)

Networking: Broadcom 57414 network adapter

Remote Management: iDRAC9 Enterprise (16G)

Power Supply: Dual 700W Titanium Hot Plug PSUs (1+1 redundancy)

Rails: Rack rails (without cable management arm) + bezel

Warranty: 3 Year Dell ProSupport
