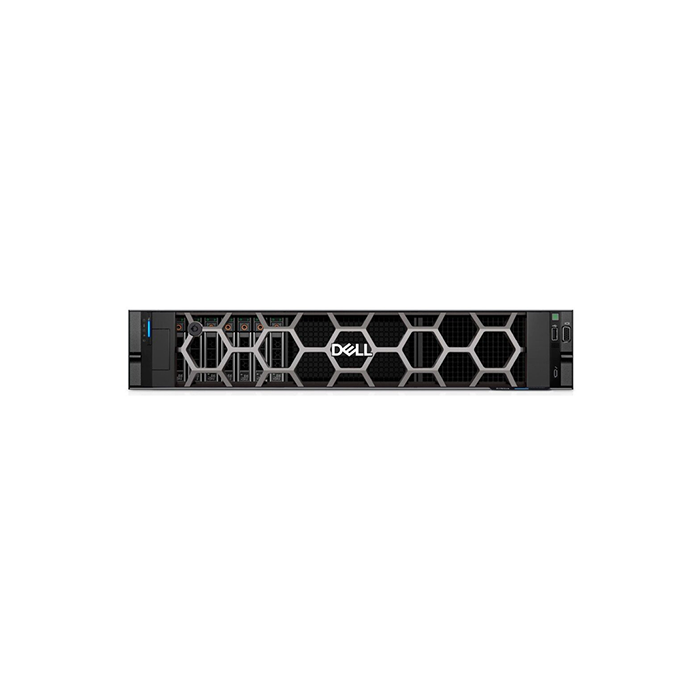

Dell PowerEdge R760xs | Xeon Silver 4510 | 32GB | 2.4TB SAS | PERC H755 | 16×2.5″” | 10GbE | Dual 1100W | 3Yr Basic

The Dell PowerEdge R760xs is a high performance 2U rack server designed to deliver reliable compute power, scalable storage and enterprise grade management for modern data center environments. Built on the latest Intel Xeon Scalable platform, the R760xs is optimized for virtualization, software defined storage, enterprise databases and high performance business workloads.

This configuration is powered by the Intel Xeon Silver 4510 processor, offering strong multi core performance with Intel Turbo Boost and Hyper Threading technology. The processor provides reliable performance for virtualization hosts, analytics platforms, infrastructure services and demanding enterprise applications.

The system includes 32GB DDR5 RDIMM ECC memory running at 4800 MT/s, delivering improved bandwidth and efficiency compared with previous generation DDR4 memory. ECC technology automatically detects and corrects memory errors, ensuring system stability and protecting critical workloads.

For storage, the server includes a 2.4TB SAS 12Gbps 10K RPM hot plug enterprise hard drive. The 2.5 inch chassis supports up to 16 SAS or SATA drives, allowing organizations to significantly expand storage capacity for virtualization environments, databases and data intensive workloads.

Storage performance and data protection are handled by the PERC H755 SAS RAID controller, supporting RAID levels 0, 1 and 5 to improve performance and provide redundancy.

Networking connectivity is delivered through both the Broadcom 5720 dual port 1Gb onboard LOM and a Broadcom 57416 dual port 10GbE BASE-T OCP NIC, enabling high speed network connectivity suitable for enterprise workloads and virtualization clusters.

System administrators can remotely monitor and manage the server through iDRAC9 Enterprise (16G), Dell’s advanced remote management platform that enables lifecycle management, firmware updates and remote diagnostics without physical access to the hardware.

Power reliability is ensured through dual redundant 1100W Titanium hot plug power supplies (1+1 configuration), providing high efficiency and continuous operation even if one power supply fails. The server also includes rack rails and a front bezel for secure installation in rack environments.

Backed by Dell 3 Year Basic Warranty, the PowerEdge R760xs delivers enterprise class performance, scalability and reliability for modern IT infrastructures.

Key Specifications

Model: Dell PowerEdge R760xs

Form Factor: 2U Rack Server

Processor: Intel Xeon Silver 4510

Memory: 32GB DDR5 RDIMM ECC (4800 MT/s)

Storage: 1 × 2.4TB SAS 12Gbps 10K RPM (Hot-Plug)

Drive Bays: Up to 16 × 2.5″ SAS/SATA drives

RAID Controller: PERC H755 SAS Front (RAID 0/1/5)

Networking:

Broadcom 5720 Dual Port 1Gb On Board LOM

Broadcom 57416 Dual Port 10GbE BASE-T OCP NIC 3.0

Management: iDRAC9 Enterprise (16G)

Expansion: PCIe Riser Config 0 (1×16 + 1×8 slots)

Power Supply: Dual 1100W Titanium Hot-Plug PSUs (1+1 redundancy)

Rails: Rack rails with front bezel

Warranty: 3 Year Dell Basic Warranty
