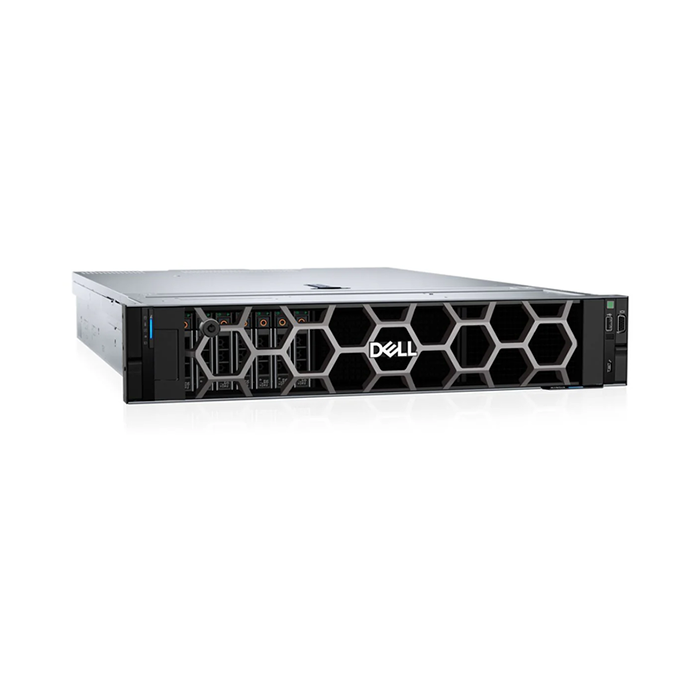

Dell PowerEdge R760xs | Dual Xeon Silver 4514Y | 32GB | 480GB SSD | PERC H755 | 8×3.5″” | Dual 1100W | 3Yr ProSupport

The Dell PowerEdge R760xs is a high performance 2U rack mounted server for modern enterprise workloads, virtualization platforms and scalable data center deployments. It runs on the Intel Xeon Scalable architecture and delivers reliable compute performance, high speed DDR5 memory and flexible storage configurations. Therefore, it is suitable for demanding IT environments.

This configuration uses dual Intel Xeon Silver 4514Y processors. Each processor features 16 cores and 32 threads with a base frequency of 2.0 GHz and a 30MB cache. As a result, the server delivers powerful multi core performance for virtualization clusters, application hosting, analytics platforms and enterprise infrastructure services.

The system includes 32GB DDR5 RDIMM ECC memory (2 × 16GB) running at 5600 MT s. It provides improved bandwidth and performance compared with previous generation memory. In addition, ECC memory detects and corrects errors automatically. Therefore, it helps maintain system stability and protect critical workloads.

For storage, the server includes a 480GB SATA read intensive enterprise SSD. It uses a 2.5 inch drive mounted in a 3.5 inch hybrid hot plug carrier. As a result, it delivers fast boot times and reliable performance for operating systems and enterprise applications. The 3.5 inch chassis supports up to 8 SAS or SATA drives. Therefore, organizations can expand storage as infrastructure needs grow.

The PERC H755 SAS RAID controller manages storage performance and redundancy. It supports RAID 0, 1 and 5 configurations. As a result, it improves storage performance and protects critical data.

The Broadcom 5720 dual port 1GbE onboard interface provides reliable network connectivity. In addition, the OCP NIC slot allows future expansion. Therefore, organizations can upgrade networking as needed.

Administrators can monitor and manage the server using Dell iDRAC9 Enterprise. Moreover, this platform enables lifecycle management, remote diagnostics and firmware updates without physical access.

Dual hot plug 1100W Titanium power supplies ensure reliable power. Therefore, the server continues operating even if one power supply fails. In addition, the system includes a standard fan set and CPU heatsink to maintain stable thermal performance.

The system ships without an operating system. Therefore, organizations can deploy VMware ESXi, Windows Server or Linux based on their requirements.

Dell backs this server with 3 Year ProSupport. As a result, the PowerEdge R760xs delivers enterprise grade reliability, scalability and professional support for mission critical IT infrastructure.

Key Specifications

Model: Dell PowerEdge R760xs

Form Factor: 2U Rack Server (3.5″ chassis)

Processors: 2 × Intel Xeon Silver 4514Y (16C / 32T each)

Memory: 32GB DDR5 RDIMM ECC (2 × 16GB, 5600 MT/s)

Storage: 1 × 480GB SATA SSD (Read Intensive, Hot Plug)

Drive Bays: Up to 8 × 3.5 Inch SAS/SATA drives

RAID Controller: PERC H755 SAS Front

Networking: Broadcom 5720 Dual Port 1GbE Onboard

Remote Management: iDRAC9 Enterprise (16G)

Cooling: Standard fan set + CPU heatsink

Power Supply: Dual 1100W Titanium Hot Plug PSUs (1+1 redundancy)

Rails: ReadyRails sliding rails (no cable management arm)

Operating System: No OS / BOSS blank

Warranty: 3 Year Dell ProSupport
