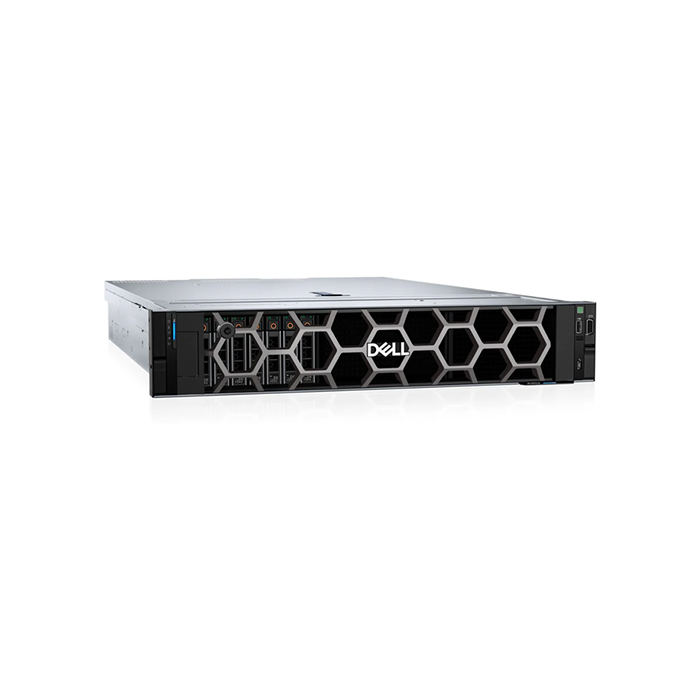

Dell PowerEdge R760xs | Xeon Silver 4410Y | 16GB | 480GB SSD | PERC H755 | 8×2.5″” | Dual 700W | TPM | 3Yr ProSupport

The Dell PowerEdge R760xs is a modern 2U enterprise rack server built for virtualization, data processing and enterprise application workloads. Designed on the latest Intel Xeon Scalable platform, the R760xs offers enhanced compute performance, high speed memory architecture and flexible storage capabilities, making it ideal for modern data center deployments.

This configuration is powered by the Intel Xeon Silver 4410Y processor, delivering 12 cores and enterprise class performance for virtualization platforms, infrastructure services and high performance computing tasks.

The server includes 16GB DDR5 RDIMM ECC memory running at 4800 MT/s, providing higher bandwidth and improved efficiency compared with previous generation DDR4 memory. ECC technology ensures system reliability by automatically detecting and correcting memory errors.

For storage, the system is equipped with a 480GB SATA Read Intensive SSD (2.5″ hot plug) installed in a hybrid carrier. The 2.5 inch chassis supports up to eight SAS or SATA drives, allowing organizations to scale storage capacity as business data requirements increase.

Data protection and storage performance are handled by the PERC H755 RAID controller, enabling advanced RAID configurations that improve storage performance and provide redundancy for critical data.

Networking connectivity is provided through the Broadcom 5720 dual port network interface, ensuring reliable connectivity for enterprise network environments.

The system includes Trusted Platform Module (TPM) 2.0, which enhances platform security by protecting system integrity and enabling secure encryption and authentication.

System administrators can manage and monitor the server using iDRAC9 Enterprise, Dell’s advanced remote management platform that allows remote diagnostics, firmware updates and lifecycle management without requiring physical access to the hardware.

Power reliability is ensured through dual hot plug 700W Titanium power supplies (1+1 redundancy), allowing the server to continue operating even if one power supply fails.

The server includes ReadyRails sliding rails and a front bezel, allowing secure and easy installation in rack environments.

Backed by Dell 3 Year ProSupport with Next Business Day onsite service, the PowerEdge R760xs delivers enterprise grade reliability, security and scalability for organizations building modern IT infrastructures.

Key Specifications

Model: Dell PowerEdge R760xs

Form Factor: 2U Rack Server

Processor: Intel Xeon Silver 4410Y (12 Core)

Memory: 16GB DDR5 RDIMM ECC (4800 MT/s)

Storage: 1 × 480GB SATA Read Intensive SSD (Hot Plug)

Drive Bays: Up to 8 × 2.5″ SAS/SATA drives

RAID Controller: PERC H755 RAID controller

Networking: Broadcom 5720 Dual Port Network Adapter

Security: Trusted Platform Module TPM 2.0

Management: iDRAC9 Enterprise

Expansion: Riser Config 4 (1×16 + 1×4 PCIe slots)

Power Supply: Dual 700W Titanium Hot Plug PSUs (1+1 redundancy)

Rails: ReadyRails sliding rails with bezel

Warranty: 3 Year Dell ProSupport with Next Business Day onsite service
