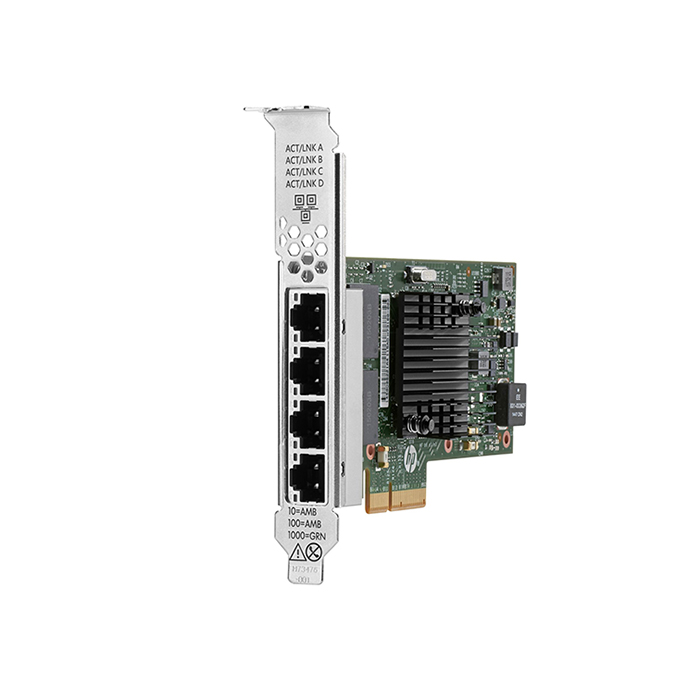

HPE Ethernet 1Gb 4-Port BASE-T BCM5719 Network Adapter (647594-B21)

The HPE Ethernet 1Gb 4-Port BASE-T BCM5719 Adapter is designed to provide efficient and reliable network connectivity for HPE ProLiant servers used in enterprise and data center environments. It offers four Gigabit Ethernet ports that allow servers to connect to multiple network segments or support higher bandwidth networking requirements.

Each port supports speeds of up to 1 gigabit per second and operates using standard Ethernet technologies including 10Base-T, 100Base-TX and 1000Base-T. This ensures compatibility with a wide range of networking infrastructure while maintaining stable data communication.

The adapter is powered by the Broadcom BCM5719 chipset, which provides high performance network processing and efficient communication between the server and network infrastructure. It connects to the server using a PCI Express 2.0 x4 interface, enabling fast data transfer and reliable connectivity.

With four Ethernet ports, the adapter supports load balancing, network redundancy and segmentation for improved network reliability. The total aggregate bandwidth can reach up to 8 Gb per second in full duplex mode, helping reduce network bottlenecks in demanding enterprise workloads.

The adapter also supports advanced networking features such as TCP checksum offload, large send and receive offload, VLAN tagging, jumbo frames and virtualization technologies like VMware NetQueue and Microsoft VMQ. These features improve network efficiency and reduce CPU utilization in virtualized server environments.

Designed for compatibility with HPE ProLiant servers, this network adapter provides reliable connectivity for applications such as virtualization platforms, database servers, cloud infrastructure and enterprise data centers.

Key Features

Model: HPE Ethernet 1Gb 4-Port BASE-T BCM5719 Adapter (647594-B21)

Port Configuration: 4 x Gigabit Ethernet RJ45 Ports

Data Transfer Rate: Up to 1 Gbps per port

Aggregate Bandwidth: Up to 8 Gb per second full duplex

Interface: PCI Express 2.0 x4

Chipset: Broadcom BCM5719

Form Factor: Stand Up Plug-in Adapter

Network Standards: IEEE 802.3, 802.3ab, 802.3u, 802.1Q, 802.3az

Supported Cables: Cat5e or Cat6 Ethernet (RJ45)

Compatibility: HPE ProLiant Servers

Usage: Data centers, virtualization environments, enterprise networking and server connectivity
